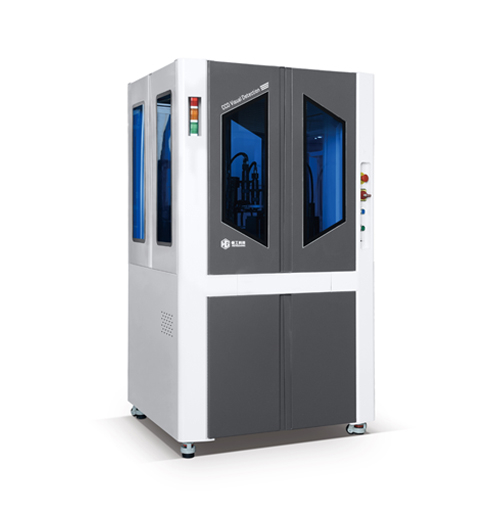

電容六面外觀檢測設備-恒工
機臺特性 Machine Features

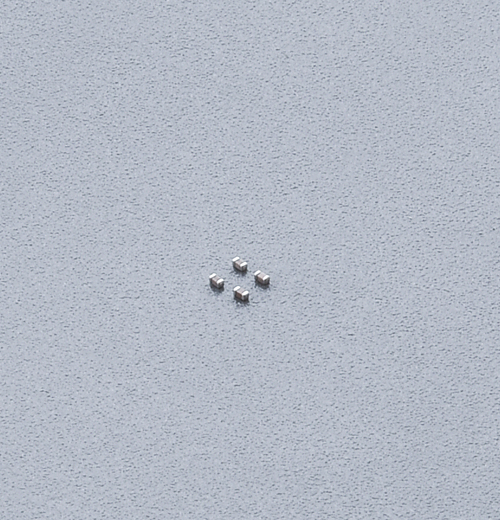

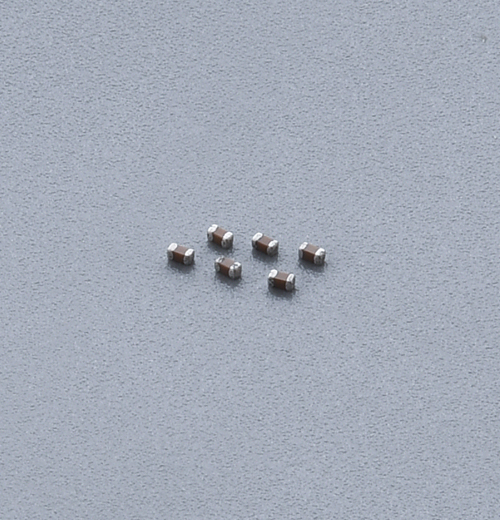

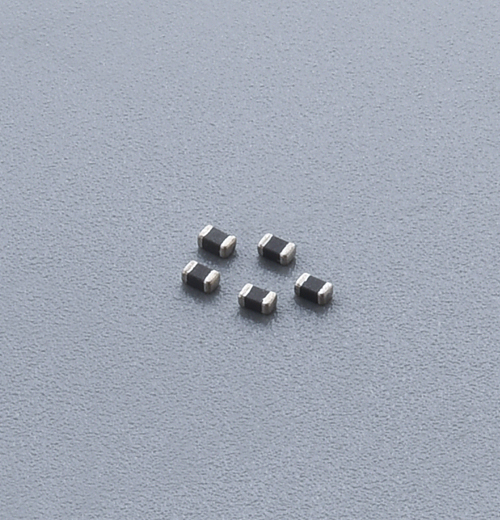

-適用于檢測各類型SMD電感、電容、電阻系列產品等。
-快速完成各項檢測指標,檢測速度可達每分鐘15000支,精度最高可達5卩。
-創新的人性化設計機臺及系統、簡易的操作方式、友好的用戶界面
? It is designed for inspecting of SMD inductance、capacitor、resistance parts of all kinds. Inspects the dimensions rapidly, with speed up to 15,000 pcs per minute, and accuracy up to 5p.
? Innovated user-friendly design machine and system, as well as user-friendly interface, allowing easy operation.
檢測指標Indicators
缺陷檢測 切偏、缺料、披鋒、開裂、劃痕、臟污等
Dimensions
cutting deviation, material shortage, sharp edge, crack, scratch, dirt, etc
系統規格 System Specifications
品牌 Brand | HENGGONG? iForce? |
檢測軟件 Software for inspecting | 恒工iForce影像檢測系統標準版 HENGGONG,iForce? Imaging Detection System Standard Edition |
設備類型 Equipment type | AOI六面檢 AOI CUBIC |
光學系統 Optical system | 德國高倍率CCD工業相機,工業鏡頭、工業光源系統 High-power CCD industrial camera, industrial lensz industrial Light source system from German |
相機個數 Number of cameras | 6個相機 6 typically |
控制系統 Control system | 雙核工業工控機 Dual core industrial computer |
專用進料導軌,振動盤設備一套,自動補料儲料斗設備 Special feeding guide, a set of vibration plate unit, auto feeding and storage hoppers (optional) | |
計數功能:具備滿Bin計數功能,可以依據產品尺寸設置Bin數量 Counting function: With full Bin counting function, the number of Bins can be set according to the product size | |
進料系統 Feeding system | 良率預警功能:具備單項不良超過設置比例時機臺報警停機功能 Yield rate warning ftjnction: ttie machine will alarm and stop when a single defect exceeds the set ratio |
Barrel induction: the barrel has automatic induction function 系統對接:開放以太網數據接口,對MES系統,交互設備狀態數據信息,發送檢測各數據報表 System docldng: Open Ethernet data interface, ?change equipment status data information for MES system, and send test data reports | |
檢測速度 | 最高達2000支/分鐘 |
Inspecting speed | up to 2,000 pcs per minute |
檢測精度 | 最高可達5u |
Accuracy | up to 5u |
電源電壓 Power voltage | 220V 50HZ |
額定功率 Rated power | 1.5KW |
氣壓 Air pressure | 0.6Mpa |
設備重量 Equipment weight | 350KG |
設備尺寸 Equipment dimensions | 900mm*800mm*1850mm |
工作溫度 Operating temperature | 0°C~50°C |
