機臺特性 Machine Features

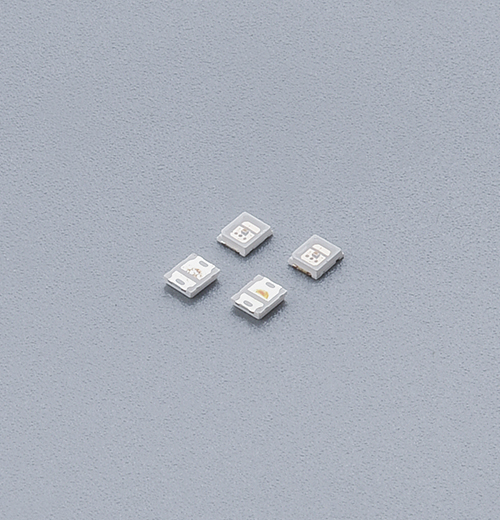

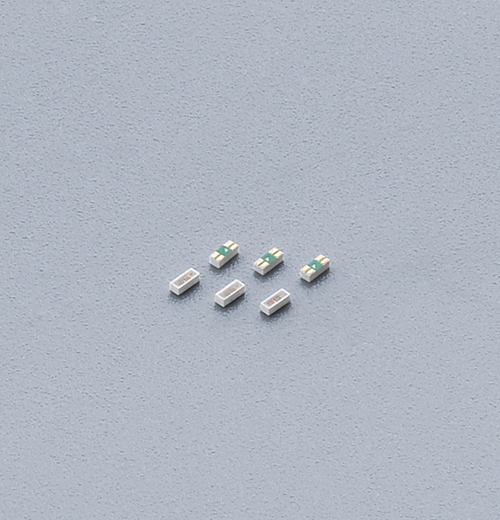

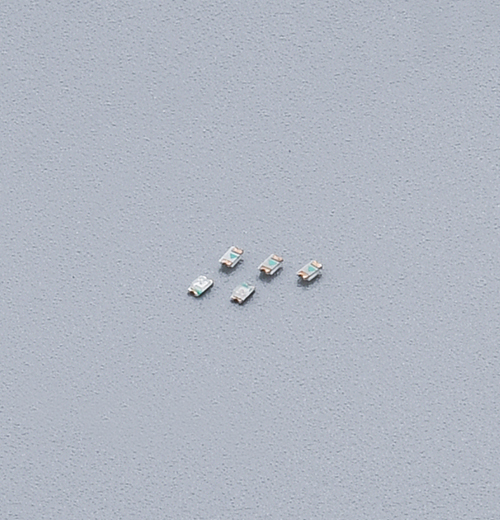

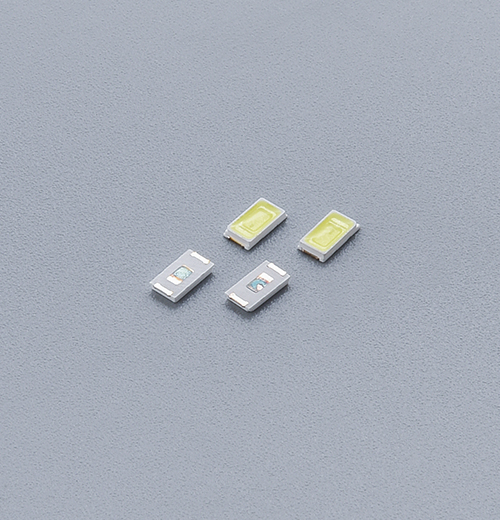

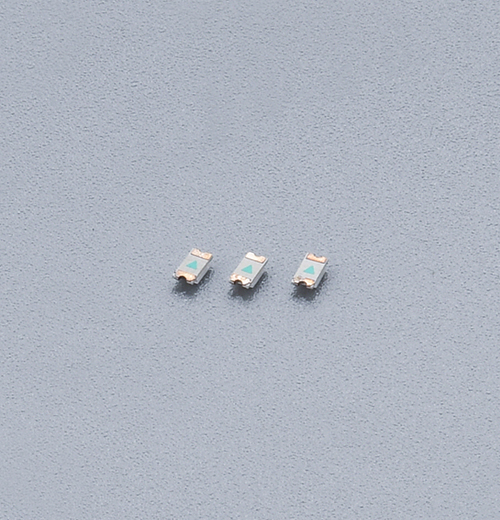

-適用于檢測各類型SMD電感、電容、電阻系列產品等。

-快速完成各項檢測指標,檢測速度可達每分鐘2000支,精度最高可達5卩。

-創新的人性化設計機臺及系統、簡易的操作方式、友好的用戶界面

? It is designed for inspecting of SMD inductance、capacitor、resistance parts of all kinds. Inspects the dimensions rapidly, with speed up to 15,000 pcs per minute, and accuracy up to 5p.

? Innovated user-friendly design machine and system, as well as user-friendly interface, allowing easy operation.


檢測指標Indicators

缺陷檢測 切偏、缺料、披鋒、開裂、劃痕、臟污等

Dimensions

cutting deviation, material shortage, sharp edge, crack, scratch, dirt, etc


系統規格 System Specifications

品牌

Brand

HENGGONG? iForce?

檢測軟件

Software for inspecting

恒工iForce影像檢測系統標準版

HENGGONG,iForce? Imaging Detection System Standard Edition

設備類型 Equipment type

AOI六面檢

AOI CUBIC

光學系統

Optical system

德國高倍率CCD工業相機,工業鏡頭、工業光源系統

High-power CCD industrial camera, industrial lensz industrial Light source system from German

相機個數

Number of cameras

6個相機

6 typically

控制系統

Control system

雙核工業工控機

Dual core industrial computer


專用進料導軌,振動盤設備一套,自動補料儲料斗設備

Special feeding guide, a set of vibration plate unit, auto feeding and storage hoppers (optional)


計數功能:具備滿Bin計數功能,可以依據產品尺寸設置Bin數量

Counting function: With full Bin counting function, the number of Bins can be set according to the product size

進料系統

Feeding system

良率預警功能:具備單項不良超過設置比例時機臺報警停機功能

Yield rate warning ftjnction: ttie machine will alarm and stop when a single defect exceeds the set ratio



Barrel induction: the barrel has automatic induction function

系統對接:開放以太網數據接口,對MES系統,交互設備狀態數據信息,發送檢測各數據報表

System docldng: Open Ethernet data interface, ?change equipment status data information for MES system, and send test data reports

檢測速度

最高達2000支/分鐘

Inspecting speed

up to 2,000 pcs per minute

檢測精度

最高可達5u

Accuracy

up to 5u

電源電壓 Power voltage

220V 50HZ

額定功率 Rated power

1.5KW

氣壓

Air pressure

0.6Mpa

設備重量 Equipment weight

350KG

設備尺寸

Equipment dimensions

900mm*800mm*1850mm

工作溫度

Operating temperature

0°C~50°C
